What's Wonder-Gun Jumbo Model ?

Jumbo model

Wonder-Gun Jumbo model is a large type of air gun that uses compressed air for blow off, suction, and for transfer of materials.
Wonder-Gun adopts the special jet system, which is a way of bringing out the full power of the compressed air. There are no worries that materials might get clogged inside the Wonder-Gun as it doesn't have any interior restrictions.

We offer 3 types: Min ID 38mm, 50mm, and 75mm

How to Use

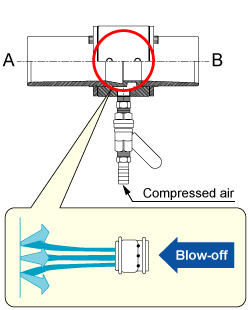

An illustration of Jumbo Model

For Blow-off

The air goes into the gun from side B together with the compressed air, and a strong air flow is blasted in spirals from the holes in the nozzle to side A.

For Suction

Please change the direction of Wonder-Gun. The air goes into the gun from side B together with the compressed air, and a large amount of air is sucked in spirals from the holes in the nozzle to side A. In this operation, Wonder-Gun can be used for cleaning or transportation.

Examples of Use

	Blow-off Wonder-Gun makes use of both compressed air and air from outside which is several times as effective as the compressed air. This structure makes Wonder-Gun blow powerfully.
	Suction Wonder-Gun sucks various kinds of things through the suction opening. For your safety, please make sure to attach a hose or a dust bag.

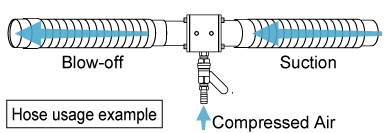

	Transportation By attaching hoses on both side, Jumbo model can be used for transferring.
