What's Air Foot Valve ?

Air Foot Valve FV-10

Air foot valve FV-10 is used for pedal operation. It is made of alumidie casting and hence the body is strong. Can be used hands-free and it is also easy to use with foot.
Simple construction, so air passes through smoothly and hence no breakdowns.
Air Foor Valve can be connected to W101/301 mounting model, W501 series, W701, and other air tools as well.

Hose joint: 1/4", Length: 170mm, Width: 82mm, Hight: 58mm, Weight: 480g

How to Use

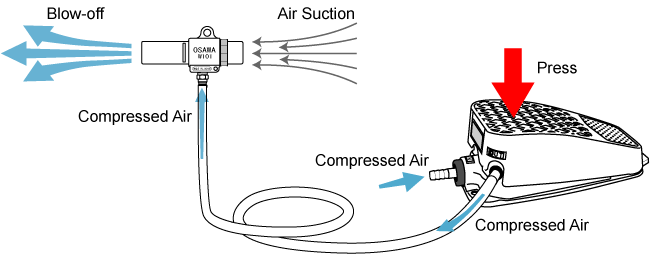

An illustration of fv-10

Compressed air comes out when you press the Air Foot Valve and air stops when you release it.
FV-10 has two port connection valve and can be connected to Wonder-Gun series or other air tools.
Cannot be connected to products with three port connection valve such as air cylinders.
