SC3T-19G

SC3T-19G
Enlarge
EXPLANATION

Built-in Silencer !! Removable !! Multiple Filters !!
Powered by compressed air, Silent-Cleaner can handle water, oil, sludge, gravel, grain, metal chips and many more materials. Bears continuous use and silent since silencer (filter) is equipped with this model.

Silent-Cleaner draws materials powerfully.
No rotating parts are involved; friction is almost absent and possibilities of breakdown leading to wear and tear are reduced to the barest minimum.
This device is built to withstand long operating period.

Weight: 1.7kg, Height: 340mm, Width: 160mm
Hose: IDφ19mm, Length: 1.5m
3L Transparent PVC Tank

Standard Type is also available.

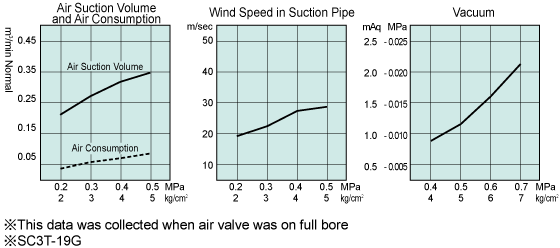

PERFORMANCE CHARTS
Performance Charts
COMBINATION EXAMPLE WITH MINI-PORTER-CYCLONE MP-19
COMBINATION EXAMPLE WITH MINI-PORTER-CYCLONE MP-19
FEATURES

JET EJECTOR

Jet ejector is the heart of the SILENT-CLEANER, supplies a strong suction. Since no rotating part is contained, no worry for a breakdown.
Adopted outstanding performance of WONDER-GUN system that is well received in all field.

SILENCER

The silencer keeps exhaust sound low … 58dB — 60dB (0.5MPa (5kg/cm²) at JIS 1m).
No need to shout over the cleaner anymore. You can clean a place pleasantly with SILENT-CLEANER.

INNER FILTER

Glass wool made filter in the unit keeps dust from not getting blown out.
