MP-38WA CF12 (with Ejector)

MP-38WA CF12
Enlarge
EXPLANATION

No filters used to Process Fine dust or Fine powders

MP38WA CF12 is a vacuum cleaner or a material transfer device that uses compressed air for vacuum via a jet ejector to process fine dust or powders.

For anyone who has to handle Fine Dust or Fine Powders

In trouble collecting fine dust or fine powders? Keep replacing the filters? The power of MINI-PORTER-CYCLONE vacuums fine powder into the Cyclone by the centrifugal force generated by a downward spiral air current. This forces the vacuumed weight of materials to drop into the storage container at the bottom. Because of this new suction structure, the filters are no longer in need. Enabling complete particle removal: essentially 100% for flour.

No Rotating parts-

Breakdowns caused by wear and tear are minimized.
(Some construction as Silent-Cleaner)

For custom-orders, Please contact us.

Centrifugal Action of Mini-Porter-Cyclone

Weight : 18.5kg
Height : 1,120mm
Width : 480mm
Plate thickness : 1.2mm
Hose : IDφ38mm×3000mm
Tank : 25L Transparent PVC
Stand: Aluminum stand with casters

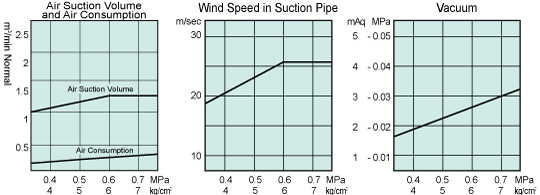

PERFORMANCE CHARTS
Performance Charts
( This data was collected when air valve was on full bore. )
